Product Brief
The main advantage of XTB series air suspension bearing high speed centrifugal blower is that it saves energy.The product of the mouth adopts
air suspension bearing, combined with precision casting impeller, super high speed and high efficiency motor,a high efficiency, energy-saving and environment-friendly high speed centrifugal blower made by international famous inverter technology.
| Model | Pressure | Air Capacity | Discharge Bore A | Cooling Way |
| mmAq | ㎥/min |
| XTB500HP-0.6 | 6000 | 316 | 500 | Air cooling |
| XTB500HP-0.8 | 8000 | 256 | 500 |
| XTB500HP-1.0 | 10000 | 205 | 500 |
| XTB500HP-1.2 | 12000 | 177 | 500 |
Product Components
| Touch screen LCD | Variable frequency drive | Cooling air muffler |
| 1,Input driving signal 2,View operational data 3,Change product settings | 1,Change the motor speed according to the PLC value
2,Change flow and pressure | 1,Saving installation space 2,Two air cooling circulation systems |
| Vent valve | Air | Internal Muffler |
| 1,Empty the air to protect the motor when starting and stopping the blower
2,Pneumatic systems utilize compressed air by itself | 1,Compress the surrounding air and gas
2,Centrifugal compression by using impellers and volutes
3,Oil free due to the use of air bearings
4,Air cooling or water cooling
5,High efficiency motor | 1,Reduce the noise transmitted to the outside through the motor of the entrance path
2,C-shaped shape |
Comparing With Other Bearings
| Item | Roller bearing | Tilting-pad bearing | Magnetic bearing | Air foil bearing |
| Lubricants | Need | Need | - | - |
| Maintenance | Need replace
after a period of
operation | Need regular
check/replace | Need replace
assistant
ball bearing | No Need |
Maintenance
period | 1 year | 1 year | 5 years | 20 years |
Power cut/
electrical failure | Oil pressure drop/
possible fault | Oil pressure drop/
possible fault | Short life of
assistant
ball bearing | No |
System
composition | Complex
oil system | Complex
oil system | Complex controller,
limited bearing
coil life | Easy
(complete
machine type) |
| Power loss | 5% loss due to
gear system | 10% loss due to
gear system | (When high speed
motor equipped)
1% loss | (When high speed
motor equipped)
Loss < 0.5% |
| A/S charges | 50 | 100 | 100 | 50 |
Advantages of XTB Blower
(1) Energy-saving, high efficiency
Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.
(2) Low noise
Adopt air bearing and direct-connection way without mechanical contact. Noise is lower than 80dB- @ 1.5m, so there’s no need to install acoustic enclosure.
(3) No oil, no vibration
Air quality reaches ISO 8573-1 0 grade without vibration, so anti-vibration work is not required.
(4) Convenient maintenance
Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance
Company Introduction
The company has successfully passed the certification of ISO9001 quality management system certification,ISO 14001 environmental management system certification,ISO 45001 occupation health and safety management system certification and ISO50001 energy management system certification.The company also has been certified as “High &New-tech Enterprises of Jiangsu Province” for many years.B-Tohin Tech R&D Center has a team of professor level senior engineers,doctoral and master’s students ,and a group of undergraduate students for scientific and technological innovation.It has established the“Jiangsu Province Energy saving Aerodynamic Equipment Engineering Technology Research Center ”and “Air Suspension Bearing Research and production Center” .At the same time,it has also obtained the national standard GB/T2.79.22-2011“Product After sales Service Evaluation System”five-star certification,“JiangSu Province Specialized,Refine,Unique and New Small and Medium sized Enterprises”,Mayor’s Quality Management Excellence Award”,“Carbon Management System Certificate”,“AA level Integration Management System Evaluation Certificate”,and“Enterprise in Compliance with Environmental Protection Equipment Manufacturing Industry Standard.”
Main Products:
Product Tags:
|
|

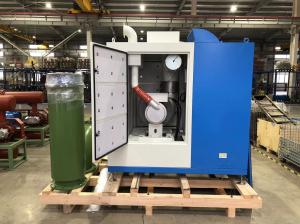

XTB 500HP Gas Transportation Air Turbo Suspension Centrifugal Blower Images
|
