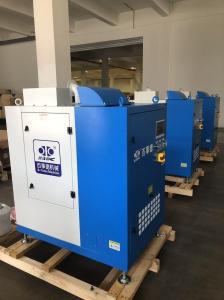

XTB 600HP 207-390m³/min Flow rate Air Turbo Suspension Centrifugal Blower

Brand Name : BK

Model Number : XTB600HP

Certification : ISO9001/ISO14001

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 300 sets / month

Delivery Time : 25 working days

Packaging Details : Exported wooden case

Flow Rate : 207-390 m³/min

Cooling way : Air

Size : W1800mm* D3500mm* H2200mm

Discharge : 500mm

Applications : Oxygen and cement Transportation, water treatment,chemical transportation

Model : XTB600HP

Weight : 3860 kg

Advantages : Intelligent control, Low noise,Small vibration, Remote control

Contact Now

Product Components
XTB 600HP 207-390m³/min Flow rate Air Turbo Suspension Centrifugal Blower

Touch screen LCD	Variable frequency drive	Cooling air muffler
1,Input driving signal 2,View operational data 3,Change product settings	1,Change the motor speed according to the PLC value 2,Change flow and pressure	1,Saving installation space 2,Two air cooling circulation systems
Vent valve	Air	Internal Muffler
1,Empty the air to protect the motor when starting and stopping the blower 2,Pneumatic systems utilize compressed air by itself	1,Compress the surrounding air and gas 2,Centrifugal compression by using impellers and volutes 3,Oil free due to the use of air bearings 4,Air cooling or water cooling 5,High efficiency motor	1,Reduce the noise transmitted to the outside through the motor of the entrance path 2,C-shaped shape

XTB 600HP 207-390m³/min Flow rate Air Turbo Suspension Centrifugal Blower

Comparing With Other Bearings

Item	Roller bearing	Tilting-pad bearing	Magnetic bearing	Air foil bearing
Lubricants	Need	Need	-	-
Maintenance	Need replace after a period of operation	Need regular check/replace	Need replace assistant ball bearing	No Need
Maintenance period	1 year	1 year	5 years	20 years
Power cut/ electrical failure	Oil pressure drop/ possible fault	Oil pressure drop/ possible fault	Short life of assistant ball bearing	No
System composition	Complex oil system	Complex oil system	Complex controller, limited bearing coil life	Easy (complete machine type)
Power loss	5% loss due to gear system	10% loss due to gear system	(When high speed motor equipped) 1% loss	(When high speed motor equipped) Loss < 0.5%
A/S charges	50	100	100	50

Machine Specifications:

Model	Pressure	Air Capacity	Discharge Bore A	Cooling Way
Model	mmAq	㎥/min	Discharge Bore A	Cooling Way
XTB600HP-0.6	6000	390	500	Air cooling
XTB600HP-0.8	8000	307	500
XTB600HP-1.0	10000	252	500
XTB600HP-1.2	12000	207	500

Advantages of XTB Blower

(1) Energy-saving, high efficiency
Air bearing turbo centrifugal blower adopts air foil bearings, direct-connection technology, high efficiency impeller and motor. No additional friction will occur, and motor power consumption is automatically adjusted according to the output airflow capacity (adjustable range 20-100%), so the energy-saving effect is remarkable.

(2) Low noise
Adopt air bearing and direct-connection way without mechanical contact. Noise is lower,so there’s no need to install acoustic enclosure.

(3) No oil, no vibration
Adopting non mechanical contact air bearings, the centrifugal blower continuously performs suction and exhaust, and the vibration of the product itself is ZERO level.

(4) Convenient maintenance
Without gearbox and oil-lubricated bearing of traditional blowers, high and new technology is introduced for convenient maintenance

Our Company and woorshops

XTB 600HP 207-390m³/min Flow rate Air Turbo Suspension Centrifugal Blower

Main Products:
